Exposync (Exposure Synchronizer) provides exposure and exposure shutter synchronization with an axis using a Delta Tau Turbo PMAC controller (e.g. Delta Tau Turbo PMAC Clipper). Digital I/O points control the exposure trigger and exposure shutter. Multiple instances of Exposync can be run to synchronize different axes using the same exposure trigger and exposure shutter control. (Only one instance can be syncing at a time.)

Part of this software is implemented as a PLC program that runs on a PMAC. The other part is an EPICS database that runs on an IOC allowing control from EPICS.

Screenshots

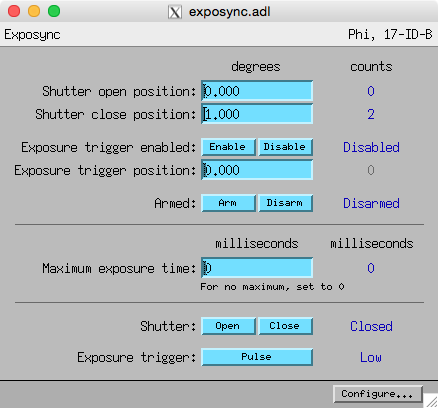

• Main

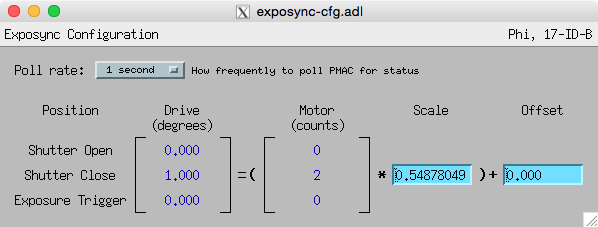

• Configuration

Requirements

• EPICS 3.14.10 or above
• Asyn 4-10 or above
• Calc 2-6-1 or above

License

• Exposync is licensed under the BSD 2-Clause license.

Release Notes

• All

Download

• Exposync 1.0.0 [Source]
