capabilities

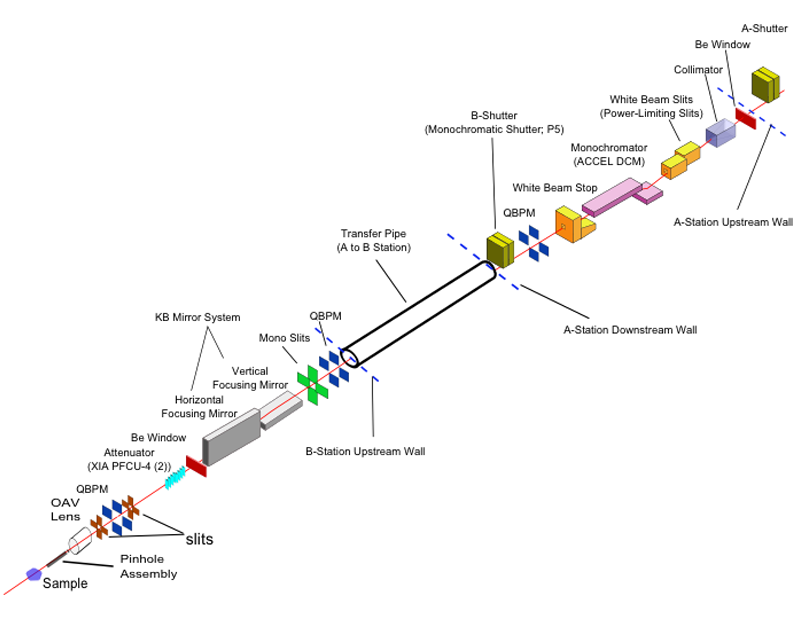

Beamline 17 ID Schematic

Beam
ENERGY: 5 - 20 keV
FLUX: 2.0 x 1013 ph/sec @ sample
FOCUS: 6 µm (H) x 6 µm (V)
BEAM SIZES: 5 - 50 µm CRLs
ATTENUATION: 0 - 100 % with Al filters
STABILITY: beam positional feedback
BEAMLINE: description, schematic

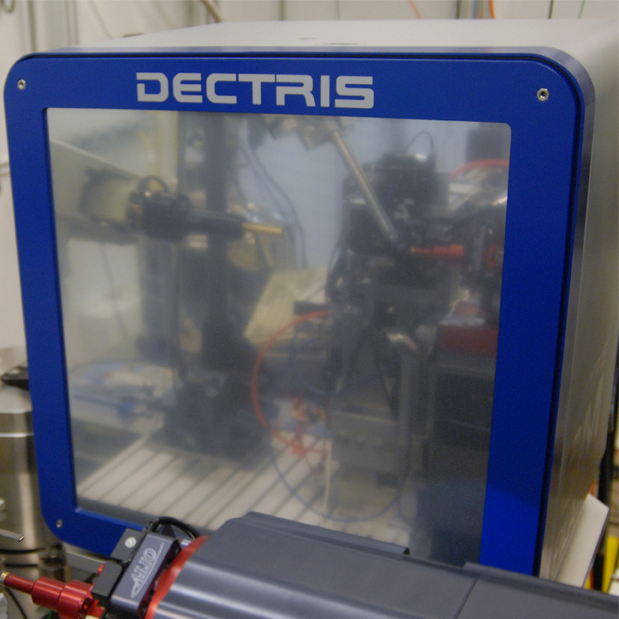

Detector DSC 0786 72

Detector
DETECTOR: DECTRIS Eiger2 X 9M
DISTANCE: 130 - 975 mm
2THETA: 0 - 15°
FRAMING RATE: 100 Hz

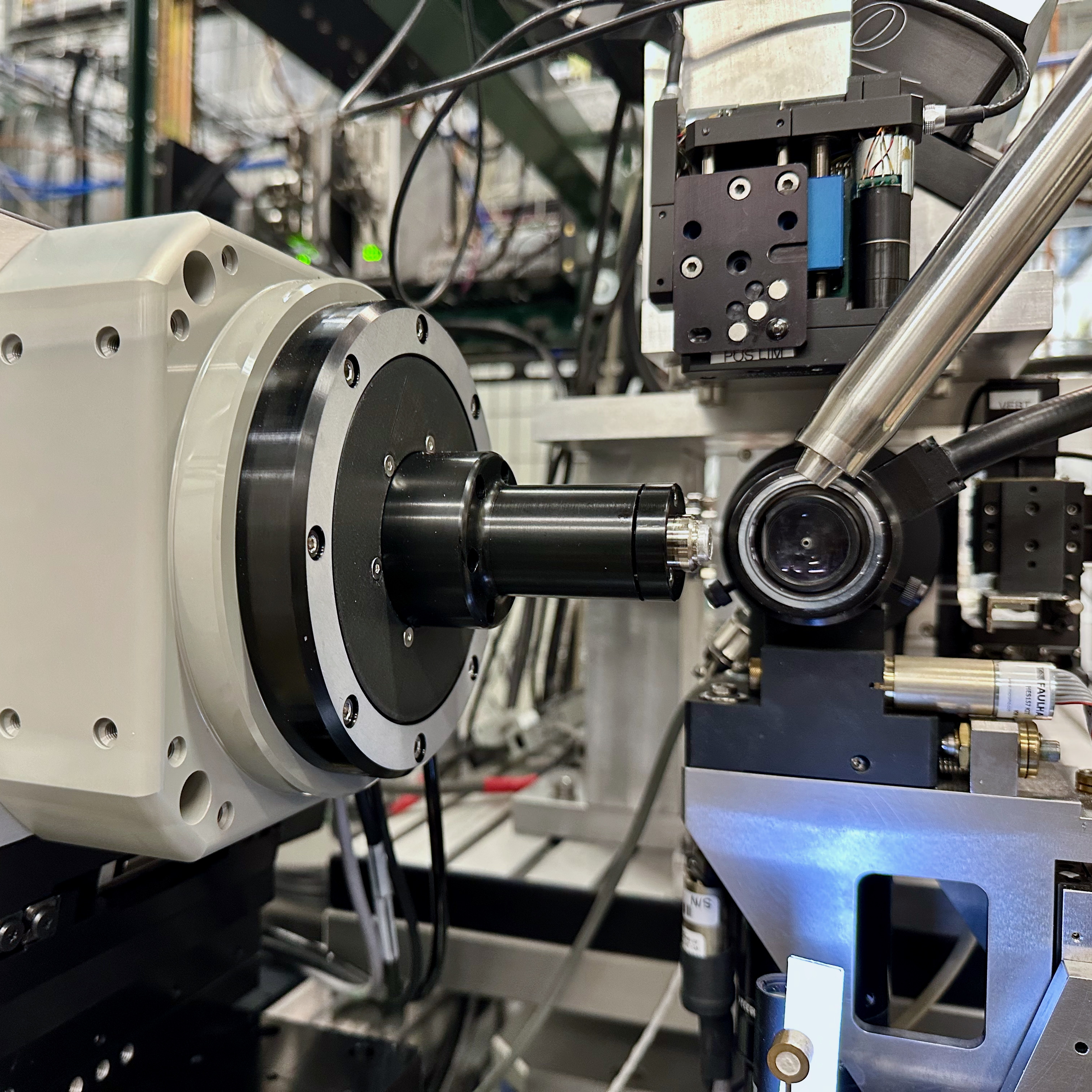

Capabilities Experiment IMG 7093

Experiment
GONIOMETER: AIM Concepts (soc <1.2 µm)
CAMERA: On-Axis Video B-Zoom
FLUORESCENCE: Rontec X-Flash silicon drift detector (SDD)
CRYO: Oxford Instruments Cryojet
MODES: auto (unattended, queued jobs) or manual
ACCESS: on-site, remote, mail-in

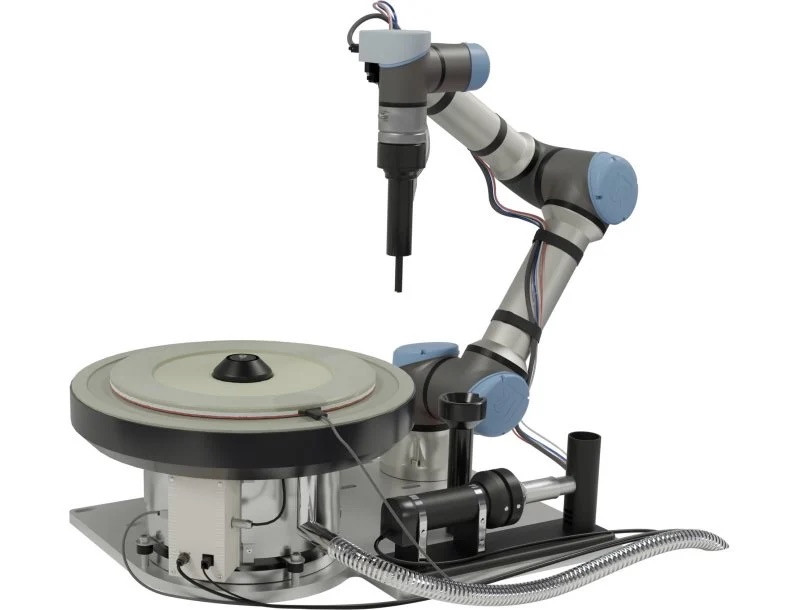

Capabilities Automation ACTOR2S

Automation
ROBOTICS: ACTOR 2S Custom Robot
- industrial strength
- customized and optimized
- ultra-high throughput
- >99.999% reliable

CAPACITY: 672 samples in 42 pucks
PUCKS: Unipucks
CENTERING: diffraction rastering with loop centering (auto or manual)

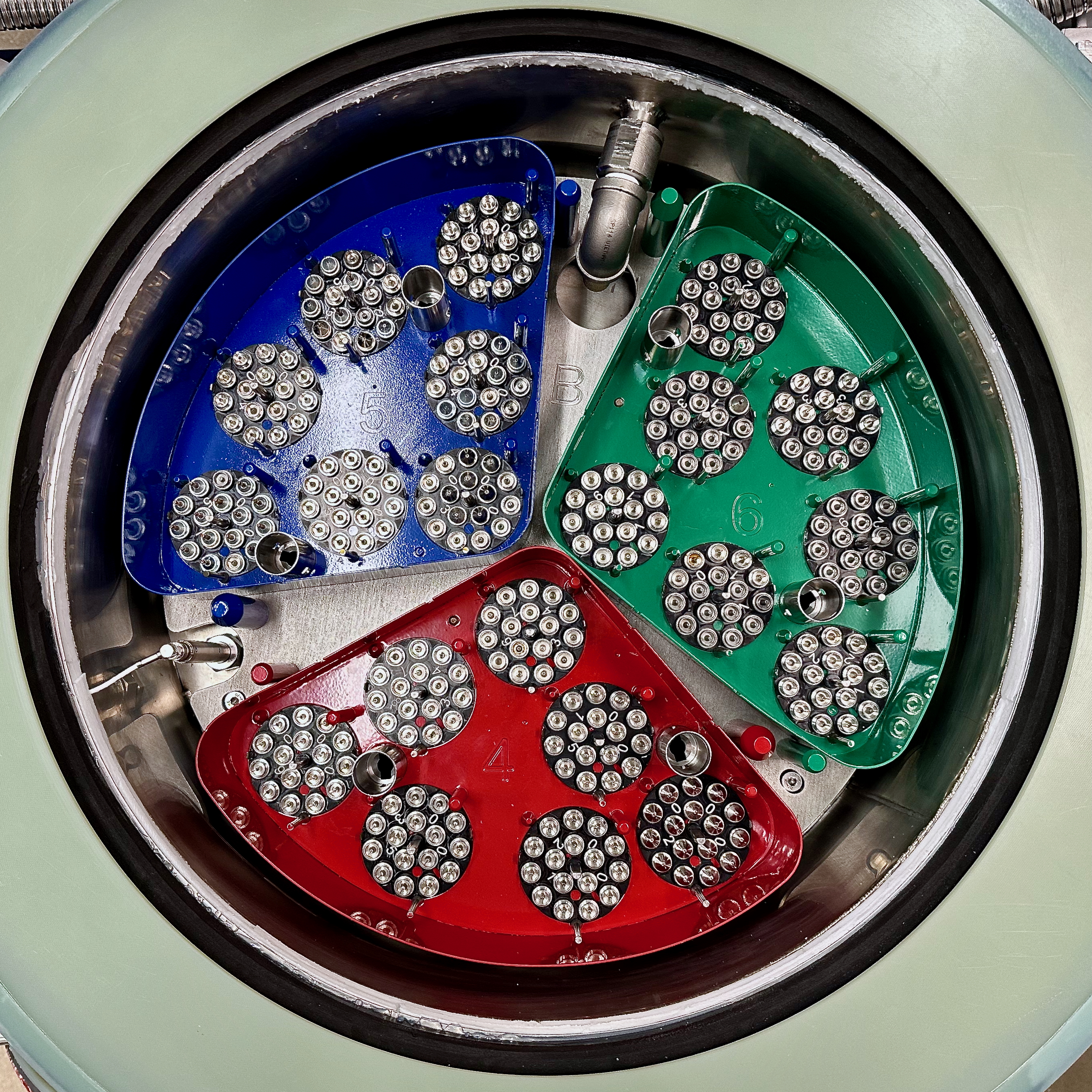

Capabilities Samples IMG 7109

Samples
PINS: 18 mm; all metal base types
LOOPS: Molecular Dimensions:
     LithoLoops (round or mesh)
MiTeGen:
     MicroLoop (regular style),
     MicroCrystal Mount
Hampton Research:
     CryoLoop

Acceptable but not compatible with auto centering:
Molecular Dimensions: LithoLoop (elliptical)
MiTeGen: MicroMount, MicroLoop E, MicroMesh, MicroGripper

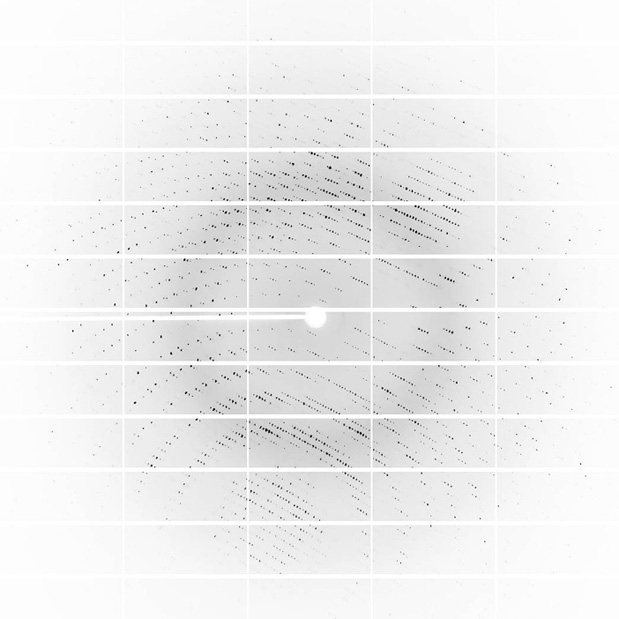

Diffraction Xtal2 1 0004c Web 72

Data
STORAGE: >250 TB
PROCESSING: autoPROC from Global Phasing, xds, mosflm, d*TREK
ANALYSIS: crystallography software
view list

TRANSFER: • IBM Aspera (FASP)
   high-speed, encrypted
• rsync
• Globus
