Ami-1700 is an EPICS driver for the AMI 1700 Liquid Level Instrument.

The driver is written as an EPICS database. It uses the asyn module to communicate with the device via an RS-232 serial connection or Ethernet connection. It supports reading the LN₂ level measurement as a percentage. It also provides a simulator for development work.

Screenshots

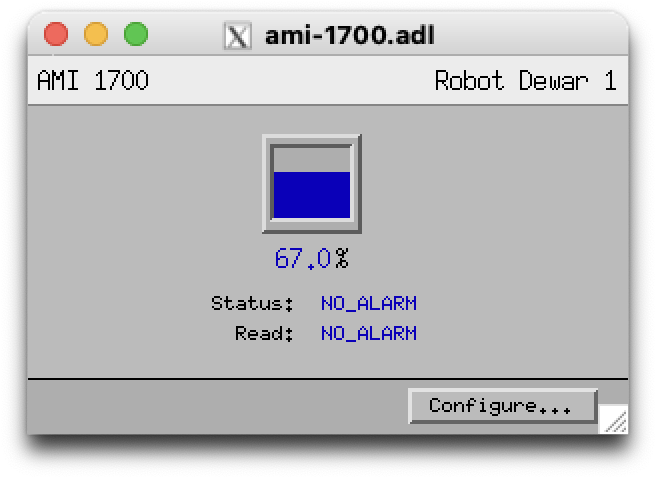

• Control

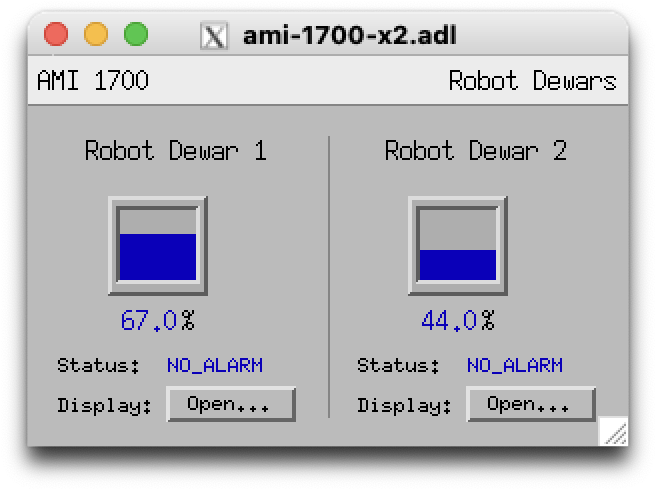

• Control x2

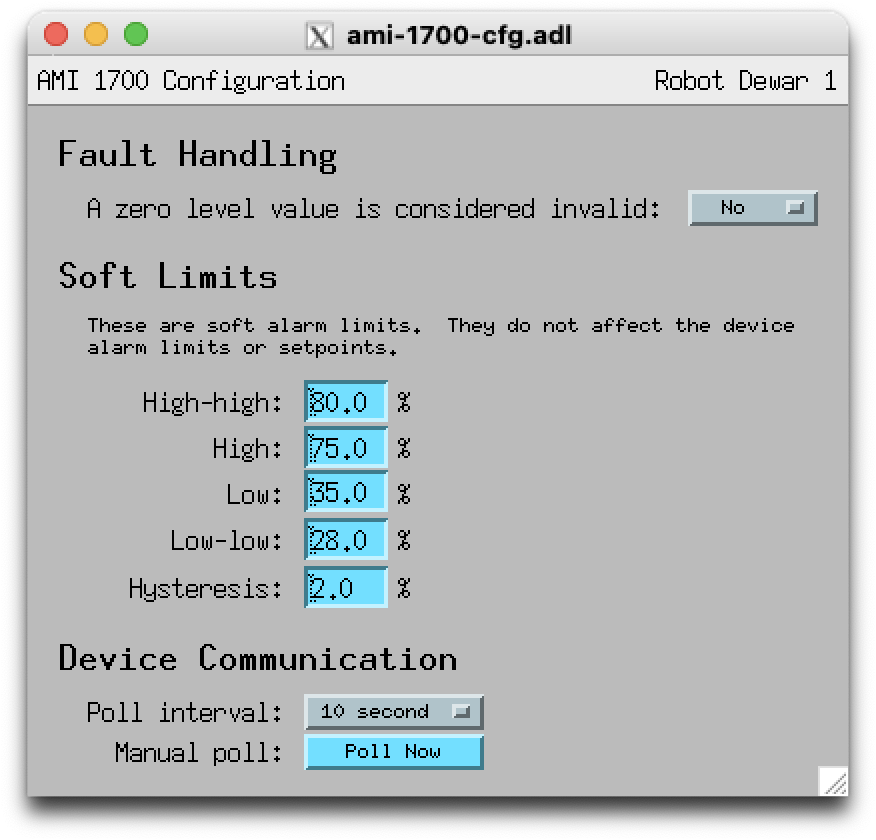

• Configuration

Requirements

• EPICS 3.14 or later
• asyn 4.8 or later
• calc 2.6.3 or later

License

• Ami-1700 is licensed under the BSD 2-Clause license.

Download

• ami-1700-1.0.0.tar.gz
